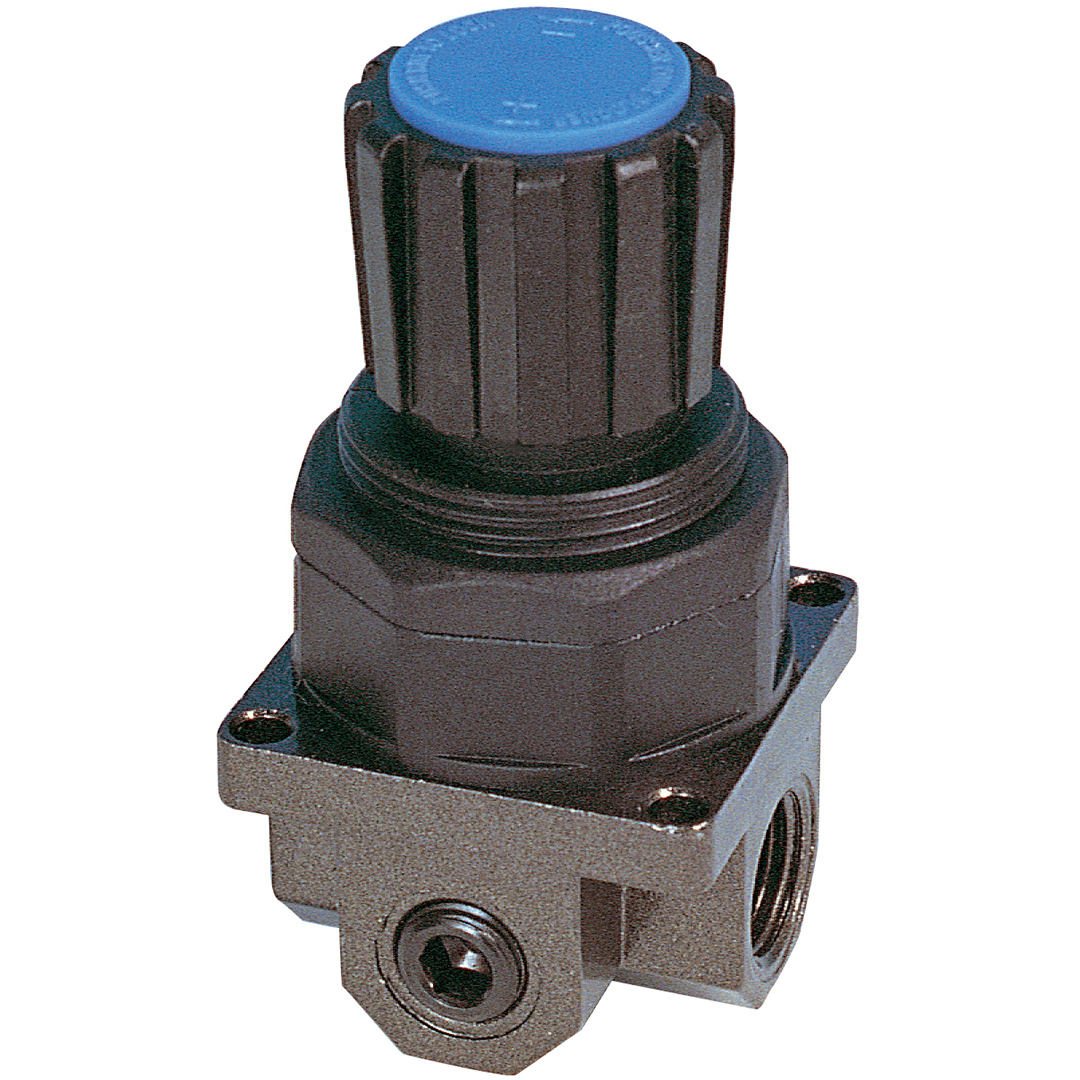

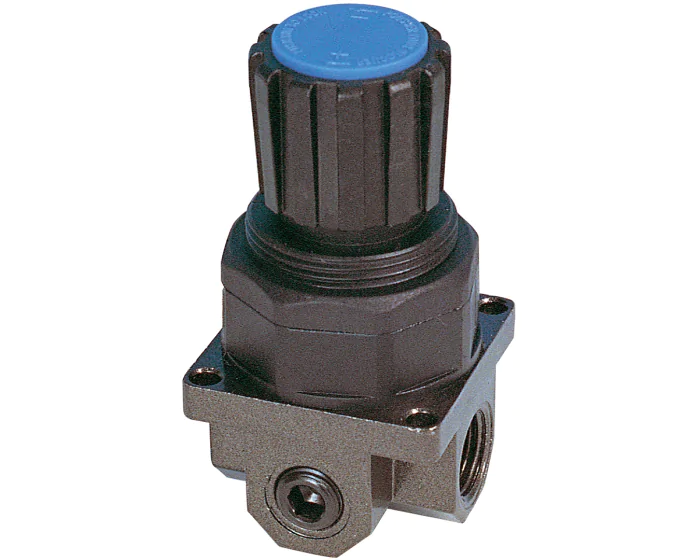

The R200 regulator is designed for the treatment of compressed air or neutral gases. Robust aluminium body. Maximum inlet pressure: 8 bar. Supplied with a mounting bracket and a pressure gauge indicating the downstream pressure.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum flow rate (Nm³/h) | 90.0 |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 31.0 |
| Fluid | Compressed air / Nitrogen |
| Body material | Aluminium |
| PS (bar) | 8 |
| Connections | BSP FF |
| TS max (°C) | 60 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| Product | Reference |
| Product Regulator R200 1762 0.5 - 8 bar 1/4'' | Reference 176202 |
If you have any questions about this product, please feel free to contact us.
